Key Takeaways
- Wire insulation is a high-resistance material that prevents electrical current from escaping wires and protects against external damage
- Common insulation materials include PVC, XLPE, rubber, and fluoropolymers, each with specific temperature and chemical resistance properties
- Modern wire insulation can withstand temperatures from 105°C to 250°C depending on the polymer type used
- Proper insulation selection depends on application requirements including temperature, chemical exposure, and flexibility needs
- Magnet wire uses specialized polymer film insulation applied in multiple layers for electrical machines and transformers
Wire insulation serves as the critical barrier between electrical current and the outside world, preventing potentially deadly electrical accidents while enabling the safe transmission of electrical energy. Without proper insulation, electrical systems would pose severe safety risks, equipment would fail prematurely, and electrical fires could become commonplace. Understanding the various types of wire insulation available and their specific applications is essential for anyone working with electrical systems.
This comprehensive guide explores the materials, manufacturing processes, and applications that make modern electrical systems both safe and reliable. From basic building wire to specialized magnet wires used in electric motors, we’ll examine how different insulation materials perform under various conditions and help you make informed decisions for your specific applications.

What is Wire Insulation
Wire insulation is a non-conductive material that surrounds electrical conductors to prevent unwanted current transfer and protect both equipment and personnel from electrical hazards. This continuous insulating layer serves multiple critical functions beyond simple electrical isolation.
The primary purpose of electrical wire insulation is preventing electrical current from escaping the intended circuit path. When current carrying conductors lack adequate insulation, electrical energy can arc to nearby grounded surfaces, creating dangerous shock hazards and potential fire risks. Proper insulation maintains electrical resistance between the conductor and external environment, ensuring current flows only through the designed circuit.
Wire insulation also provides crucial protection against environmental factors that could damage the conductor or compromise electrical connections. Moisture, chemicals, UV radiation, and mechanical abrasion can all degrade unprotected conductors over time. Quality insulation materials resist these environmental stresses while maintaining their electrical properties throughout the wire’s operational life.
The thickness and dielectric strength of insulation directly correlate to the voltage rating of the wire. Higher voltage applications require thicker insulation or materials with superior dielectric properties to prevent electrical breakdown. This relationship between insulation characteristics and voltage capacity forms the foundation of electrical safety standards and wire selection criteria.
Unlike protective jackets or armor that provide mechanical protection, insulation serves as the primary electrical barrier. While jackets protect during installation and environmental exposure, the insulation layer bears responsibility for electrical safety throughout the wire’s service life.

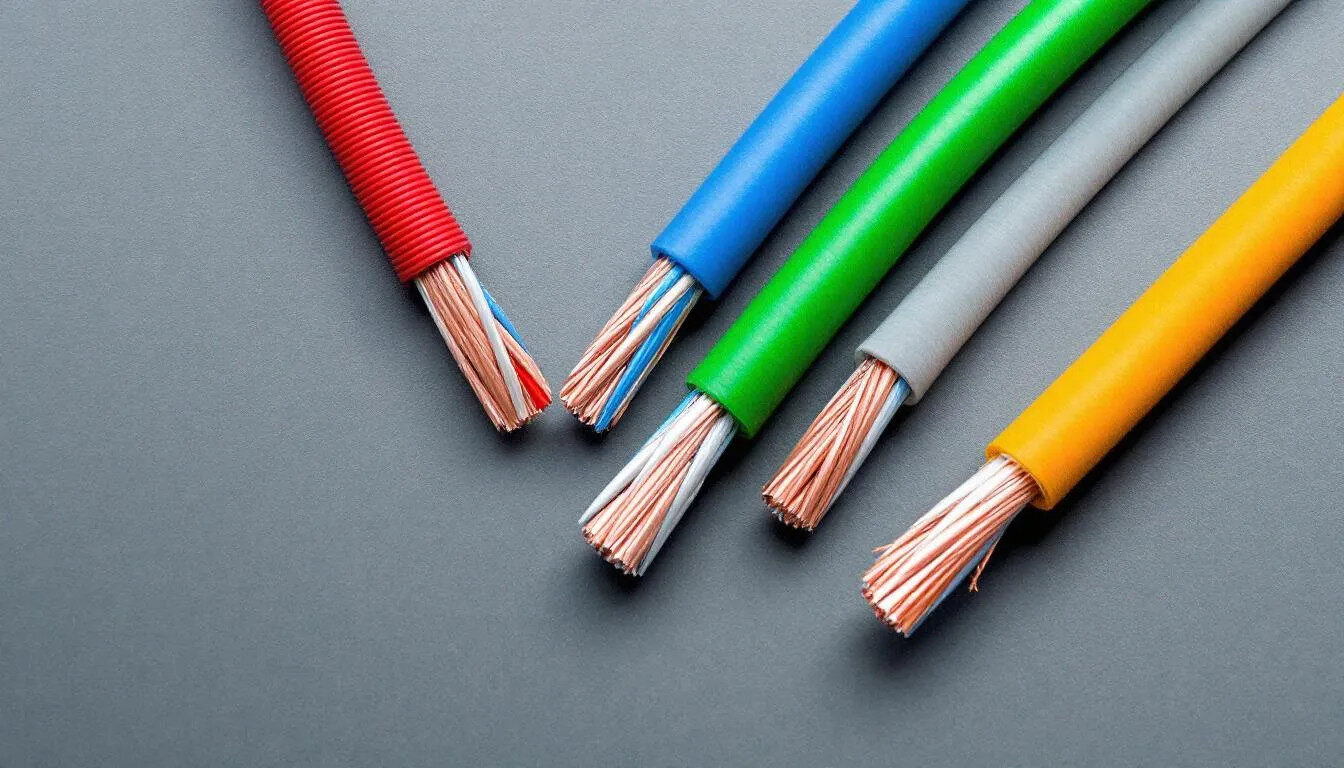

Common Wire Insulation Materials
Modern wire insulation utilizes various polymer materials, each engineered for specific performance characteristics and applications. The selection between thermoplastic and thermoset materials significantly impacts the wire’s operational capabilities and cost.
Thermoplastic insulation materials soften when heated and harden when cooled, allowing for efficient manufacturing processes like extrusion. These materials can be repeatedly heated and reformed, making them cost-effective for many applications. However, their performance may be limited at higher operating temperatures compared to thermoset alternatives.
Thermoset insulation undergoes chemical cross-linking during manufacturing, creating a permanent molecular structure that cannot be remelted. This process typically results in superior chemical resistance, higher temperature ratings, and improved mechanical properties, though often at increased material costs.
Material selection criteria must balance multiple factors including operating temperatures, chemical exposure, flexibility requirements, and cost considerations. Each application presents unique challenges that different insulation materials address with varying degrees of effectiveness.
PVC (Polyvinyl Chloride) Insulation
PVC insulation represents the most widely used wire insulation material due to its excellent balance of performance and cost. This thermoplastic material provides good electrical resistance, making it suitable for a broad range of applications from household wiring to industrial equipment.
The temperature rating for standard PVC insulation typically reaches 75°C in both wet and dry locations, making it appropriate for most building wire applications. PVC demonstrates excellent resistance to moisture, many chemicals, and provides inherent fire resistance properties that contribute to electrical safety.
THHN and THWN wire types commonly utilize PVC insulation, serving as the backbone of commercial and residential electrical systems. The material’s ease of processing during manufacturing helps maintain competitive pricing while delivering reliable performance for general-purpose applications.
However, PVC insulation has limitations that must be considered for demanding applications. The material becomes more brittle at lower temperatures and may have reduced flexibility compared to rubber alternatives. Additionally, standard PVC may not provide adequate chemical resistance for harsh industrial environments where specialized materials prove more suitable.
XLPE (Cross-Linked Polyethylene) Insulation
Cross-linked polyethylene insulation offers superior performance characteristics through its thermoset structure, providing enhanced chemical resistance and higher temperature ratings compared to standard thermoplastic materials. The cross-linking process creates a three-dimensional molecular network that significantly improves the material’s thermal and mechanical properties.
XLPE insulation typically achieves a 90°C temperature rating in both wet and dry locations, representing a substantial improvement over standard PVC materials. This higher temperature capability allows for increased current carrying capacity in the same conductor size, potentially reducing installation costs through smaller wire requirements.
The enhanced flexibility and abrasion resistance of XLPE insulation make it particularly valuable for applications involving frequent movement or challenging installation conditions. XHHW-2 wire utilizing XLPE insulation demonstrates exceptional resistance to environmental stresses while maintaining electrical performance over extended periods.
Chemical and ozone resistance properties of XLPE insulation exceed those of many thermoplastic materials, making it suitable for industrial applications where exposure to various chemicals or outdoor environmental conditions occurs regularly.
Rubber Insulation
Rubber insulation provides superior flexibility characteristics, particularly valuable in applications requiring frequent movement or operation in low temperature environments. Various rubber compounds offer different performance profiles, allowing selection of materials optimized for specific application requirements.
The exceptional flexibility of rubber insulation maintains performance even at lower temperatures where other materials might become brittle or crack. This characteristic makes rubber insulation ideal for portable equipment, extension cords, and applications where wire movement is frequent.
Different rubber formulations provide resistance to oils, chemicals, and environmental exposure while maintaining the flexibility advantages that distinguish rubber from rigid plastic materials. The material’s ability to withstand repeated flexing without degradation proves particularly valuable in robotics and automation applications.
However, rubber insulation often comes at higher material costs compared to thermoplastic alternatives, and some formulations may have lower temperature ratings than high-performance thermoset materials like XLPE.
Fluoropolymer Insulation
Fluoropolymer insulation materials, including PTFE and related compounds, offer exceptional resistance to virtually all chemicals, acids, and solvents. These advanced materials provide the highest performance characteristics available for wire insulation, though at significantly higher costs than conventional materials.
The chemical inertness of fluoropolymer insulation makes it indispensable for applications involving exposure to corrosive substances that would quickly degrade other insulation types. Chemical processing facilities, semiconductor manufacturing, and aerospace applications frequently specify fluoropolymer insulation for critical systems.
High temperature resistance represents another key advantage of fluoropolymer materials, with some formulations maintaining performance at operating temperatures exceeding 200°C. This capability enables applications in extreme environments where conventional insulation materials would fail.
Despite superior performance characteristics, the high cost of fluoropolymer insulation limits its use to applications where the performance benefits justify the additional expense. Careful consideration of actual application requirements helps determine when these premium materials provide the most cost-effective solution.

Specialized Insulation for Magnet Wire
Magnet wire requires specialized insulation systems designed specifically for electromagnetic applications in electric motors, transformers, and other magnetic devices. The insulation for magnet wires differs significantly from standard building wire, utilizing thin polymer films applied in multiple layers to achieve optimal electrical and mechanical properties.
Polyimide insulated magnet wire represents the premium solution for high-performance applications, offering exceptional thermal stability and electrical properties. The polymer film insulation applied to magnet wires must withstand not only electrical stresses but also mechanical forces generated during winding operations and magnetic energy conversion.
The manufacturing process for magnet wire insulation typically involves applying at least two layers of specialized polymer materials, creating a continuous insulating layer that maintains integrity even when formed into tight coils. Additional protection often includes fiberglass tape wrapping and vacuum impregnated varnish systems for completed windings.
Temperature classes for magnet wire insulation range from 105°C for standard applications up to 250°C for high temperature polyimide systems. These ratings ensure long term reliability in motor windings and transformers operating under demanding thermal conditions.
Polyimide Insulation
Polyimide insulation provides the highest temperature rating available for magnet wire applications, withstanding continuous operation at temperatures up to 250°C. This exceptional thermal stability makes polyimide the material of choice for electric vehicles, aerospace applications, and high-performance industrial equipment where operating temperatures exceed the capabilities of older insulation materials.
The molecular structure of polyimide creates exceptional resistance to thermal degradation, chemical attack, and mechanical stress. These properties prove essential in applications where magnet wires experience extreme conditions during operation, such as traction motors in electric vehicles or generators in large ships.
Polyimide film insulation demonstrates superior electrical properties including high insulation strength and low dielectric loss, contributing to improved efficiency in electric motors and transformers. The material’s ability to maintain these properties across a wide temperature range enables consistent performance throughout the equipment’s operational envelope.
While polyimide insulation commands premium pricing compared to standard polyester film or polyamide polyimide alternatives, its performance advantages often justify the additional cost for critical applications requiring maximum reliability and temperature capability.
Wire Types and Insulation Applications
Different wire types utilize specific insulation materials optimized for their intended applications, with building wire, industrial cable, and specialized conductor each requiring different performance characteristics. Understanding these applications helps in selecting appropriate wire types for specific installations.
Building wire applications predominantly use THHN, THWN-2, and XHHW-2 wire types, each utilizing different insulation materials to meet specific performance requirements. THHN wire with PVC insulation provides cost-effective solutions for most commercial and residential applications, while XHHW-2 with XLPE insulation offers enhanced performance for demanding environments.
Industrial applications often require wire with enhanced chemical resistance, higher temperature ratings, or specialized mechanical properties. Fluoropolymer insulation becomes valuable in chemical processing environments, while specialized rubber compounds serve applications requiring exceptional flexibility or low-temperature performance.
Magnet wire for electric motors and transformers represents a specialized category requiring insulation optimized for electromagnetic applications. These wires utilize polymer film insulation systems designed to withstand both electrical stresses and mechanical forces encountered in rotating machinery and magnetic devices.
THHN vs XHHW-2 Wire Comparison
THHN wire utilizes PVC insulation with a nylon jacket, providing dual-rated performance for both wet and dry locations at 75°C wet and 90°C dry. This wire type offers excellent cost-effectiveness for general building applications while meeting code requirements for most commercial and residential installations.
XHHW-2 wire features XLPE insulation with enhanced performance characteristics, including 90°C ratings in both wet and dry locations. The thermoset insulation provides superior chemical resistance, enhanced flexibility, and improved long-term reliability compared to thermoplastic alternatives.
The performance differences become particularly apparent in demanding environments where higher temperature ratings, chemical exposure, or enhanced durability justify the additional cost of XLPE insulation. Industrial facilities, outdoor installations, and applications with elevated ambient temperatures often benefit from XHHW-2 wire specifications.
Code compliance considerations also influence wire selection, with some applications specifically requiring 90°C rated conductors for proper ampacity calculations. Understanding these requirements helps ensure proper wire selection while optimizing installation costs and long-term performance.

Protective Coverings vs Insulation

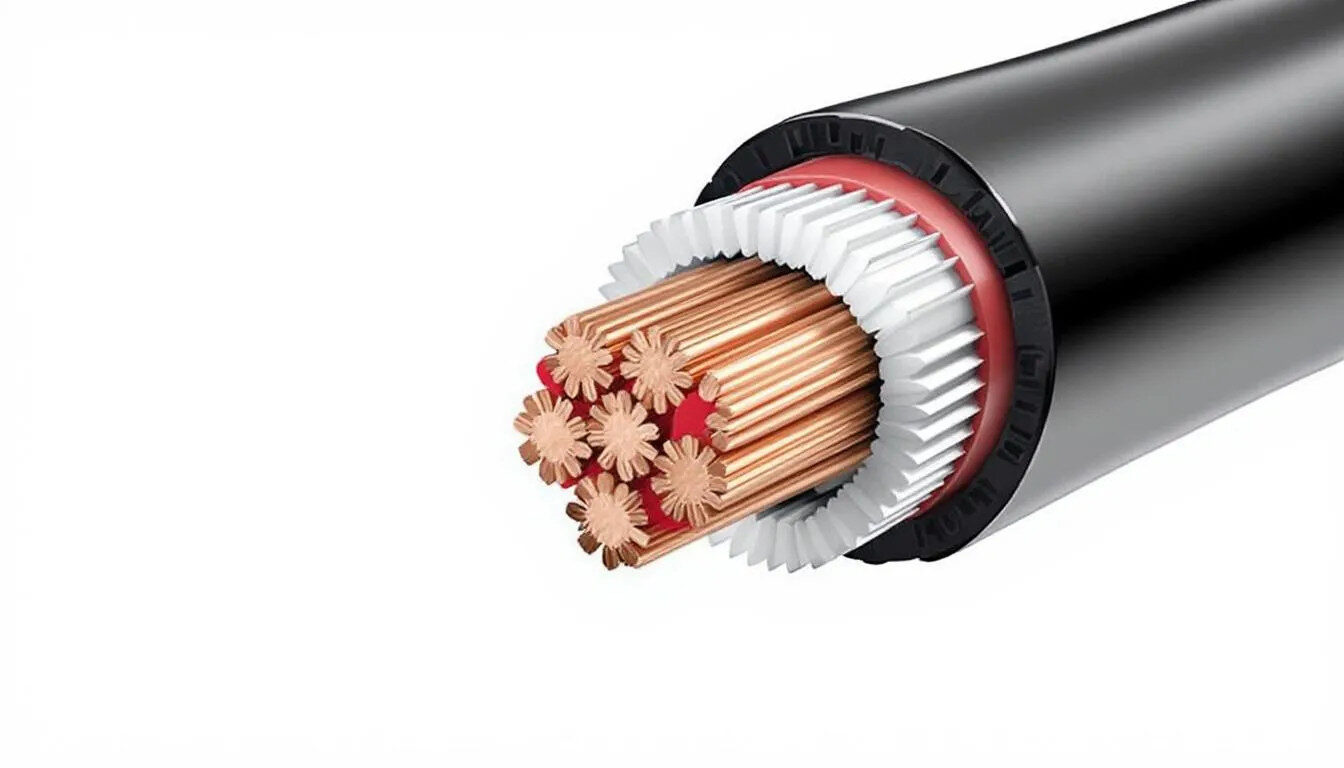

Modern electrical cables utilize a three-layer protection system consisting of insulation, jacket, and armor, each serving distinct functions in the overall cable design. Understanding the role of each layer helps in proper cable selection and installation practices.
Wire insulation serves as the primary electrical protection layer, maintaining electrical resistance between the conductor and external environment. This layer bears responsibility for preventing electrical current from escaping the intended circuit path and protecting personnel from electrical hazards.
Jacket materials provide protection during installation and environmental exposure, shielding the insulation from mechanical damage, UV radiation, and chemical exposure. While jackets contribute to overall cable durability, they do not provide electrical insulation and cannot substitute for proper insulation materials.
Armor systems offer mechanical protection in commercial applications where cables face potential physical damage from construction activities, equipment operation, or environmental hazards. Metallic armor may also provide electromagnetic shielding benefits while protecting the inner cable components.
The interaction between these protection layers determines the cable’s overall performance and suitability for specific applications. Proper selection requires understanding how each layer contributes to the cable’s ability to withstand installation stresses and operational environment demands.
Manufacturing and Quality Considerations
The manufacturing process for wire insulation involves precise control of material application, curing conditions, and quality testing to ensure consistent performance. Modern manufacturing facilities operate under stringent quality control procedures to maintain insulation integrity and electrical properties.
Multiple layer application for magnet wires requires specialized equipment capable of applying thin polymer films uniformly around the conductor. The process must maintain precise thickness control while avoiding defects that could compromise insulation strength or create weak points in the finished product.
Quality control measures include continuous monitoring of insulation thickness, electrical testing for breakdown voltage, and thermal endurance testing to verify long-term performance characteristics. These procedures ensure that finished products meet specified performance requirements and regulatory standards.
Vacuum impregnation processes used with completed windings help eliminate air pockets and improve overall insulation strength. Insulating varnish applied during this process fills microscopic gaps between wire coated surfaces and provides additional environmental protection for the winding system.
Clean manufacturing environments prevent contamination that could compromise insulation properties or create reliability issues in finished products. Environmental controls maintain consistent temperature and humidity levels while preventing particle contamination during critical manufacturing steps.

Frequently Asked Questions
What happens if wire insulation fails or deteriorates over time?
Insulation failure can lead to several dangerous conditions including electrical shock hazards, short circuits, equipment damage, and potential fire risks. When insulation degrades, electrical current can leak to unintended paths, creating dangerous ground faults or arc faults. Environmental factors like extreme heat, UV exposure, chemical contact, or physical damage are common causes of insulation deterioration. Regular inspection and testing of electrical systems help identify insulation problems before they create safety hazards.
How do you determine the appropriate insulation thickness for a specific voltage rating?
Insulation thickness requirements are determined by electrical codes and industry standards based on the system voltage and environmental conditions. Higher voltages require thicker insulation or materials with superior dielectric strength to prevent electrical breakdown. The National Electrical Code (NEC) and various international standards specify minimum insulation requirements for different applications. Factors including temperature, chemical exposure, and mechanical stress may require insulation exceeding minimum code requirements.
Can wire insulation be repaired, or must the entire wire be replaced?
Minor insulation damage in non-critical areas can sometimes be repaired using appropriate electrical tape or heat-shrink tubing, but this should only be considered a temporary solution. For critical applications, household appliances, or areas where safety is paramount, damaged wire should be completely replaced. Repairs may not provide the same level of protection as original insulation and could create reliability issues over time. Professional evaluation is recommended for any insulation damage in electrical systems.
What environmental factors most commonly cause insulation degradation?
Common factors include excessive heat beyond the material’s temperature rating, UV radiation exposure, chemical contact, moisture ingress, and mechanical abrasion. High temperatures accelerate chemical breakdown of polymer materials, while UV radiation can cause surface cracking and embrittlement. Chemical exposure varies by insulation type, with some materials highly resistant to specific chemicals while being vulnerable to others. Proper material selection considering the expected environmental conditions significantly extends insulation life.
Why do some magnet wires have insulation that melts during soldering?
Some magnet wires use special “solderable” enamel insulation designed to melt and burn off during the soldering process, eliminating the need to mechanically strip the wire before making electrical connections. This solderable enamel typically consists of a thermoplastic material that melts at soldering temperatures while maintaining excellent insulation properties during normal operation. The underlying insulation layer remains intact to provide continued electrical isolation after the solderable coating is removed during connection.
