Stilo Grafica Group S.r.l.

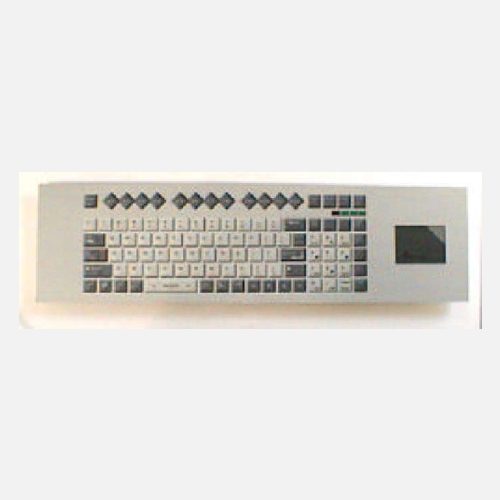

Keyboards Industrial 104-keys Compact Membrane Keyboard

Specifications:

• 104 keys compact membrane keyboard USB I/F
• Available in Desktop, 19"x3U and 19"x4U
• Cable Length: 1.8 m
• IP68 standard, acid & basic resistance approved
• Operating Temp. -20 ~ +80°
• REACH & RoHS conformity
• Optional IP65 touchpad

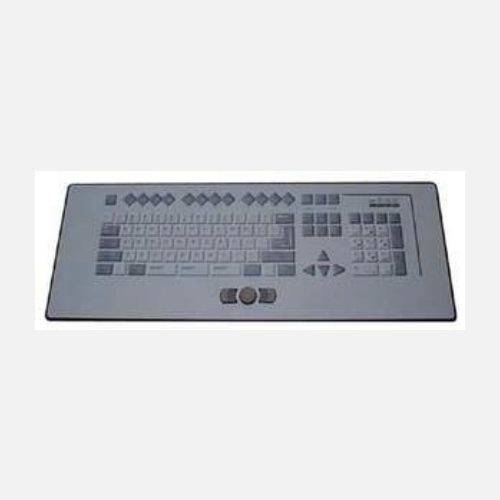

Industrial 102-keys Membrane Keyboard

Specifications:

• 102 keys membrane keyboard USB I/F
• Available in Desktop, 19"x3U and 19"x4U DIN
• Cable Length: 1.8 m
• Optional IP65 touchpad
• IP68 standard, acid & basic resistance approved
• Operating Temp. -20 ~ +80°
• REACH & RoHS conformity

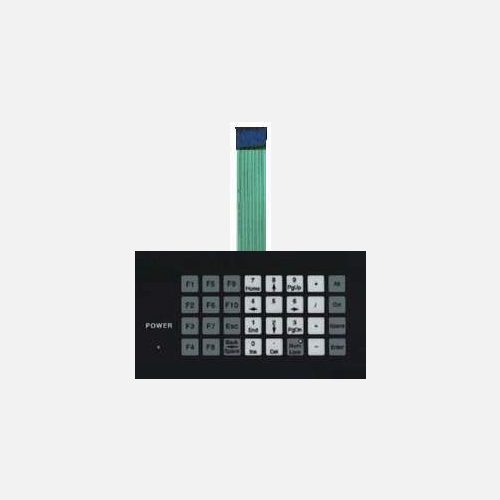

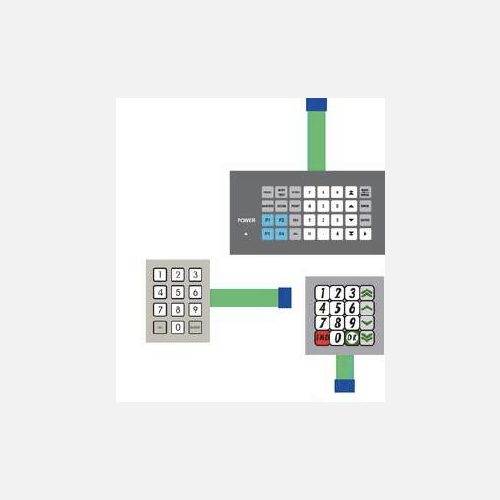

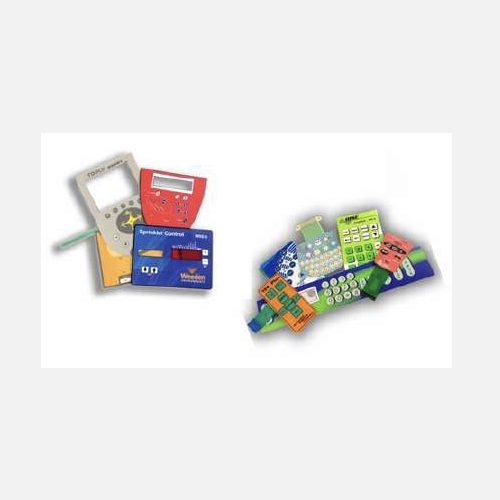

Industrial 32 / 16 / 12 Keys Membrane Keypad
without Metal Domes

Specifications:

• IP68 standard, acid & basic resistance approved
• Available in Desktop and Wallmount
• Acrylic adhesive
• Operating Temp. -20 ~ +80°
• REACH & RoHS conformity

• Matt / gloss overlay
• Rigid / flexible PCB
• Metal dome and polydome
• Integrated LED
• Backlight
• Digital UV ink
• Plastic box
• Waterproof design

INDUSTRIAL UNIT CONTROL

Specifications:

• Plastic enclosure
• Membrane keypad
• Embossed metal dome
• Multicolor graphic overlay
• PMMA lens with anti-glare, anti-scratch and anti-fog treatment
• Waterproof IPXX

IMD (In Mold Decoration)

Advanced technique that combines decoration and injection molding, incorporating the decoration for a durable finish in a single step.

Process:

• Design printed on a thin film.
• Insertion of film into the mold.
• Injection of plastic granules to create a finished piece with integrated decoration.

Advantages:

• High-quality graphic decoration with good wear resistance, suitable for outdoor applications.
• Optimized production process with qualitative and eco-sustainable advantages.

REMOTE CONTROL MEDICAL APPLICATION

Specifications:

• Plastic enclosure
• Electronic board
• Multicolor backlight silicone
• 3.5” display with PCAP capacitive touch screen

Stilo can provide full support to customers for design and production.

SILICONE KEYPAD CUSTOM MADE

Keyboards made in silicone with flexible or rigid circuits.

• Colored silicone keypads
• Laser etched for backlight
• Coating protections: epoxy, gloss, matt, PU coating
• Plastic keycap & keypad assembly
• Rapid prototyping service in mock-up

The overlay can be customized by screen printing, laser etching, or material coloring.

It offers tactile feedback, practicality, durability, and comfort. The rubber surface makes it waterproof and washable.

Suitable for different environments, including industrial, medical, off-highway, military and more.

Specifications:

• Overlay: Silicone
• Graphic: Laser etching, silk-screen printing
• Overlay treatment: PU coating, epoxy coating
• Electronic: Flex PES, FR4
• Contact: Conductive pills, conductive ink, metal dome, microswitch
• Backlight: LED

CAPACITIVE

Cover plate:

• PET / PMMA / tempered glass, thickness from 0.2 mm to 8 mm

PCB:

• Rigid and flexible
• Backlight available

Mechanical frame:

• PC / PVC / aluminum

Electronic output:

• USB / I2C / matrix

Artwork:

• Digital or silk-screen printing

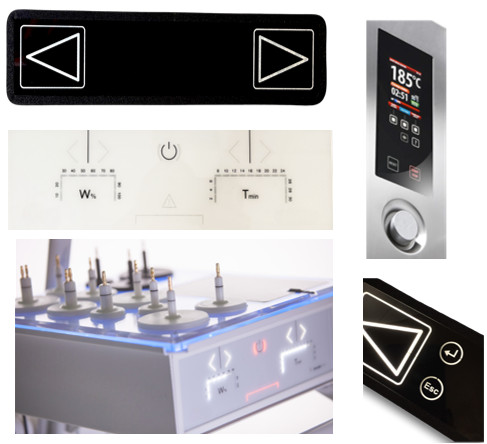

TOUCH CAPACITIVE & DIAL ON GLASS BUTTON

• Customized display
• Brightness enhancement
• Touch solution
• System integration

Professional services with optical and touch technology, including tailor-made cover lenses, touch sensors, EMI shielding, optical bonding and display enhancements to achieve specific visibility performance.

A capacitive dial is an input device based on capacitive sensing technology.

The touch panel detects changes in the electric field caused by the dial approaching, touching, or sliding.

Main components:

• Capacitive sensor electrodes
• Controller IC, e.g. EETI EXC series
• Firmware
• Dial structure, plastic & metal

Operation:

• Finger approaches → electric field changes.
• IC detects capacitance variation.
• System processes data → outputs rotation events.

Potential applications:

• Smart home appliances: cooktops, speakers, washing machines.
• Automotive HMI: central knobs for audio or navigation.
• Medical & industrial panels: seamless, precise, easy to clean.
• Creative tools: zoom or brush control.

Technical advantages:

• Non-contact sensing with no mechanical wear.
• High design flexibility for glass, plastic and selected surfaces.
• Multi-functional input: rotation, touch, slide and press gestures.
• Visual integration with LED ring or display feedback.
• Adjustable sensitivity and customizable response curves.

Specifications:

• 3.5” ~ 15”
• Custom design
• Controller I/F USB2, I2C
• IPx6, AG, anti-UV aging
• Display portrait orientable
• Dial knob on PCAP glass rotator

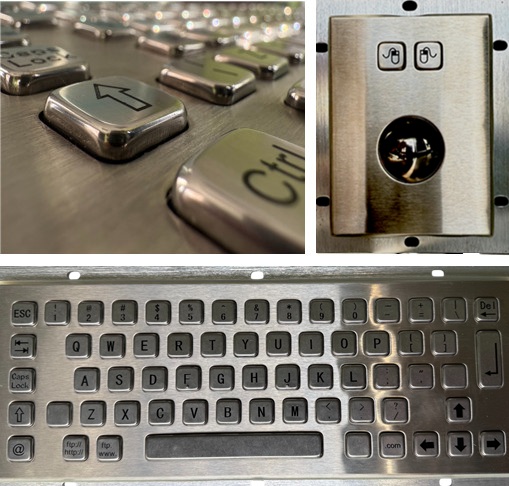

ANTIVANDALIC

Specifications:

• INOX keyboard 4T / 16T / 64T / 66T
• I/F PS2 IBM compatible or USB 1.1
• USB Type-A connector or Mini DIN 6p connector
• Trackball IP65 / IP54
• Cable Length: 1.8 m
• IP65 standard, acid & basic resistance approved
• Operating Temp.: -20° +80° C
• REACH & RoHS conformity

Co-molding is a high-tech process used for the production of electronic device enclosures.

The combination of rigid plastic, such as PC or PA66, and silicone SI creates a single body with keys, gasket and connectors.

Advantages and customization options:

• Waterproof design IPx6
• Backlight options and more
• Simplified assembly processes on the customer side

Capacitive and resistive touch screen systems can be integrated on request.

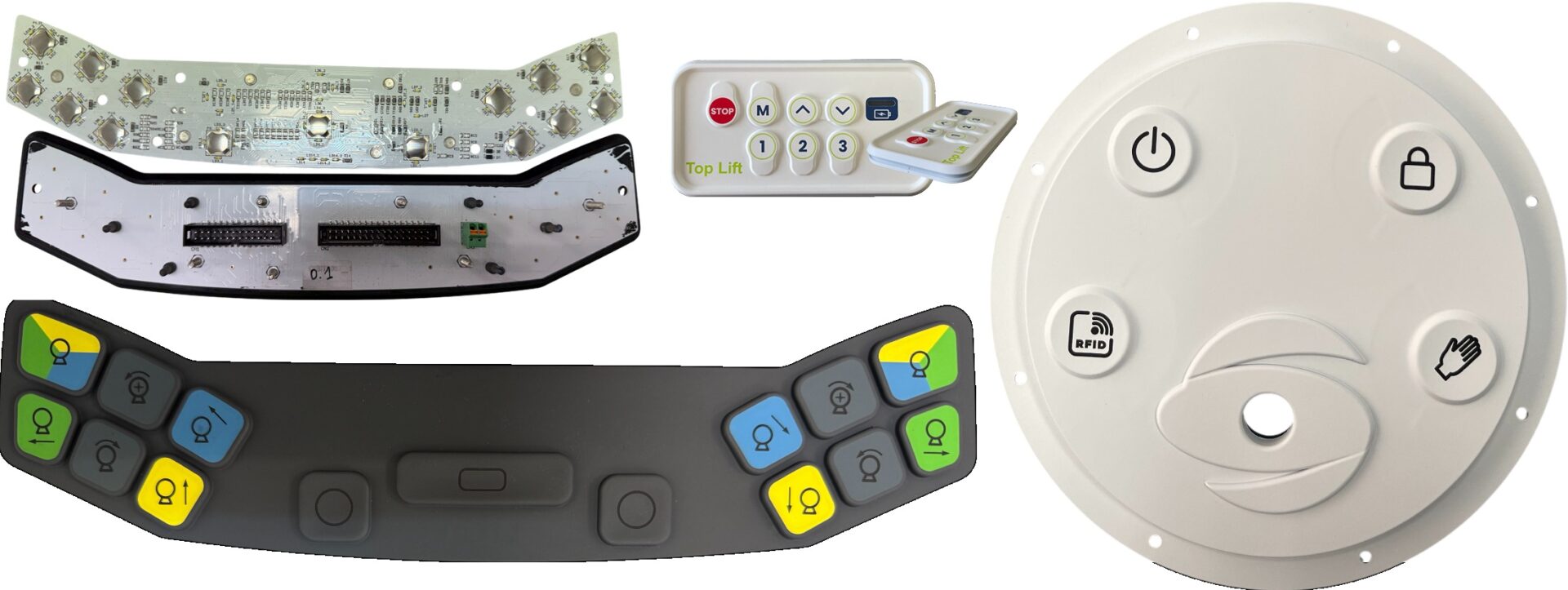

SILICONE KEYPAD FOR MEDICAL DEVICES

Technologies involved:

• Deadface design
• Multicolor silicone keypads with backlight
• Light guide and light blocker co-molded on rear side
• Velvet soft coating protection
