An oscilloscope is a measurment instrument that captures and displays electrical signals over time. It is essential for analyzing electrical performance and diagnosing issues. This article explains how oscilloscopes work, the different types available, and best practices for accurate measurements and maintenance.
Key Takeaways
- Oscilloscopes visualize electrical signals over time, making them indispensable for monitoring and analyzing performance.
- Analog, digital, and mixed-signal oscilloscopes address different measurement needs and signal types.
- Accurate use requires proper calibration, correct probe connection, and optimized settings.
Understanding Oscilloscopes
An oscilloscope represents electrical signals with time on the x-axis and voltage on the y-axis, providing a clear picture of signal behavior. Engineers and researchers rely on them to monitor performance, analyze data, and ensure compliance with technical standards.
Historical Context
The first oscillograph was invented in 1893 as an electro-mechanical device. Later, cathode-ray tube (CRT) oscilloscopes became standard analog instruments. These laid the foundation for today’s sophisticated digital oscilloscopes.
Types of Oscilloscopes
Analog Oscilloscopes
Used in early electronics and radio servicing, analog oscilloscopes display signals continuously. Variants include:
- Electromagnetic and electrostatic types
- Dual-beam models (compare two signals at once)
- Analog storage scopes (retain traces briefly)
Although largely replaced by digital models, analog scopes remain useful for certain applications.

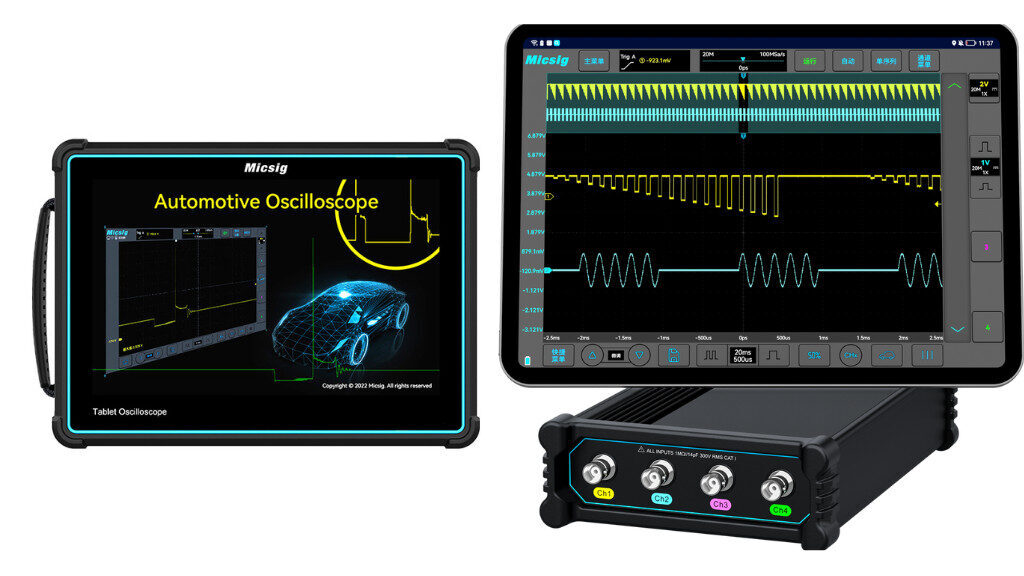

Digital Oscilloscopes
Digital oscilloscopes capture signals in digitized form for precise analysis. Benefits include:
- High sampling rates (often >1 GS/s)
- Storage and replay of waveforms
- Advanced display and measurement functions
Mixed-Signal Oscilloscopes

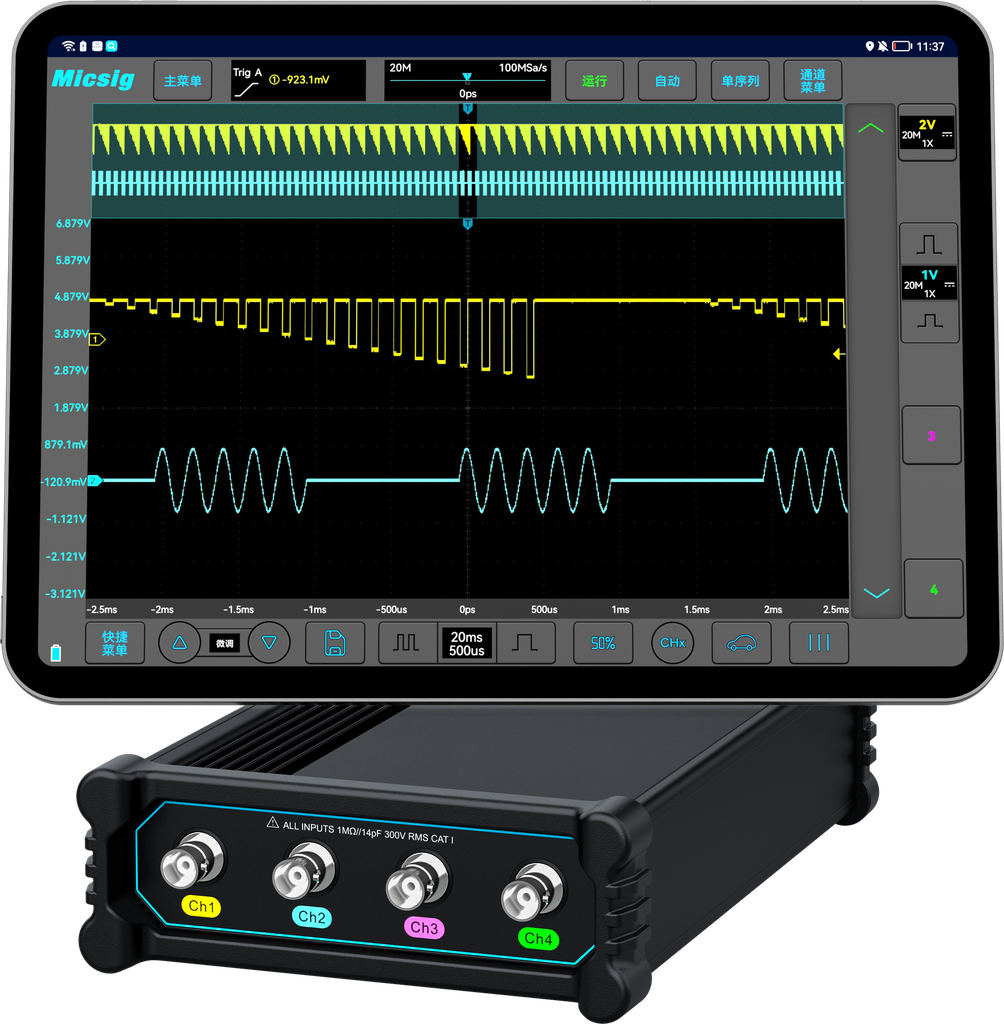

Mixed-signal models combine analog and digital inputs, ideal for analyzing embedded systems. They allow triggering across both domains and can display logic channels as binary or hexadecimal.

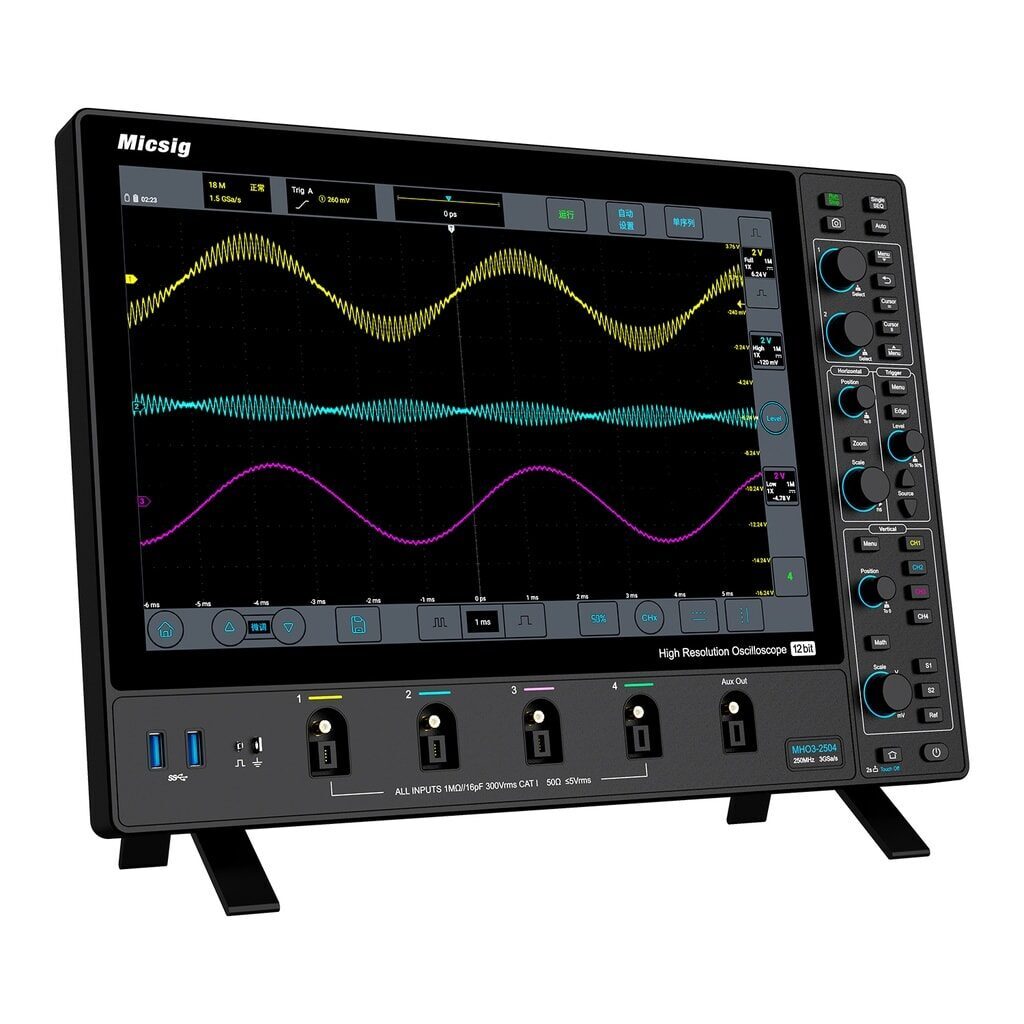

Key Components
An oscillograph comprises several key components that work together to capture and display electrical signals. These include:
- Input handling – Typical impedance: 1 MΩ with small capacitance. Standard connectors include BNC.
- Display – Modern units use LCDs with measurement tools (frequency, amplitude, duty cycle).
- Trigger system – Stabilizes waveforms by defining when measurements start, essential for capturing transient events.

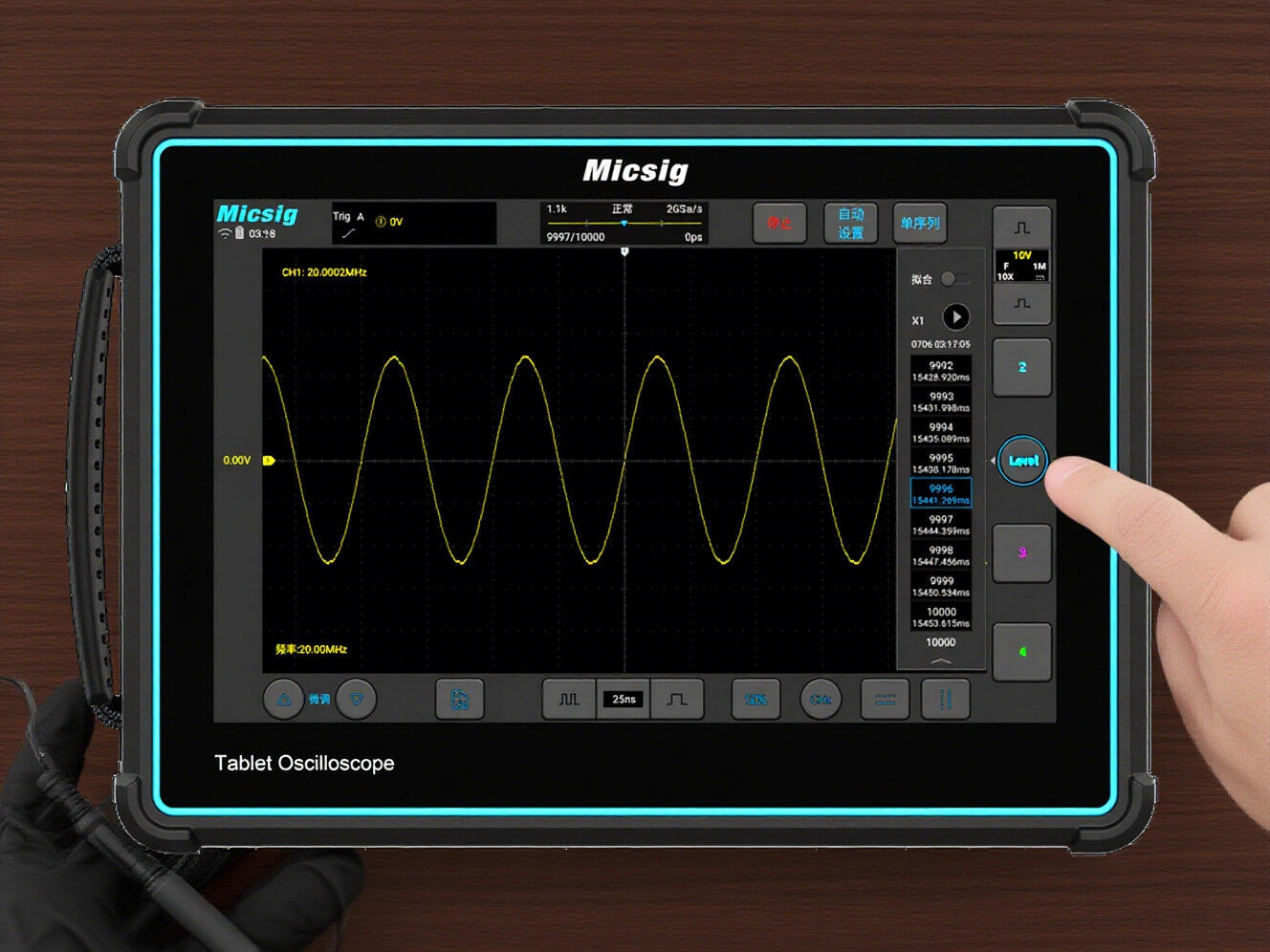

How to Use an Oscilloscope Effectively
- Prepare the device – Connect probe, power on, verify baseline display.
- Connect probes – Attach ground clip first, then probe tip. Set appropriate attenuation (1X or 10X).
- Adjust settings –
- Vertical scale: volts/div knob for amplitude
- Horizontal scale: time/div knob for frequency and duration
- Trigger level: stabilize and isolate the event of interest
For high-frequency signals, carefully adjust the time base to avoid distortion.
Measuring and Analyzing Signals
- Voltage – Ensure secure connections and correct impedance settings.
- Waveforms – Identify shapes (sine, square, sawtooth) to diagnose behavior.
- Transients – Use trigger controls to capture short-lived events without losing data.
Advanced Features of Modern Oscilloscopes
- High sampling rates for fast-changing signals
- Mixed-domain analysis – correlate time- and frequency-domain measurements
- Connectivity – USB, Ethernet, and large memory for data logging and remote access
Applications include power systems analysis, debugging electronic circuits, R&D, and troubleshooting in automotive, medical, and industrial fields.
Maintenance and Calibration
Routine maintenance – Clean with lint-free cloth, store in dry environment.
Calibration – Use a signal generator to align readings with known standards. Maintain stable environmental conditions.
Self-tests – Modern models offer built-in diagnostics; run them periodically.
Summary
Oscilloscopes (formerly called oscillographs) have evolved from simple analog devices to advanced digital and mixed-signal instruments. By understanding their types, components, and correct usage, engineers can ensure precise measurements. Regular maintenance and calibration further guarantee long-term reliability.
Frequently Asked Questions
What is the main purpose of an oscilloscope?
To display electrical signals over time for monitoring, troubleshooting, and analysis.
What types of oscilloscopes exist?
Analog, digital, and mixed-signal, each suited to different measurement tasks.
How do digital oscilloscopes differ from analog ones?
Digital oscilloscopes use digitized signals for advanced processing and higher sampling rates; analog scopes provide continuous real-time visualization.
Why is the trigger system important?
It stabilizes the display and enables precise capture of transient events.
Why are maintenance and calibration necessary?
They ensure measurement accuracy, detect early issues, and extend device lifespan.
