Key Takeaways
- The TPS010-100W GP series is a compact switching power supply family for DIN rails, covering 10–100 W outputs for global industrial and building applications.
- With a universal 90–264VAC input and optional 120–370 VDC input, the din rail power supply range simplifies global deployment and stock management.
- As a convection cooled power supply with IP20 double insulation, it delivers safe, silent, and maintenance-free operation in control cabinets.
- The series offers both 12V din rail power supply and 24V din rail power supply versions with high efficiency, low ripple noise output, and integrated overload and overvoltage protection.
- It is a CE compliant power supply, EN61347-2-13 certified power supply for LED safety, and a RoHS compliant power supply with a robust design, wide operating temperature range, and 5-year warranty power supply coverage.
Modern automation panels and smart building systems demand reliable DC power with compact dimensions, high efficiency, and global approvals. The TPS010-100W GP series from TPS Elektronik is designed precisely for these needs: a flexible din rail power supply platform from 10 W up to 100 W that fits easily into tight control cabinets while meeting strict international safety and EMC requirements.
Based on the official TPS010-100W GP Series datasheet (pages 2–3), the range combines a universal 90–264VAC input, high efficiency topology, and robust mechanical design to support applications such as industrial automation, building management, LED lighting, and medical devices. With convection cooling, IP20 double insulation, and comprehensive protections, it delivers dependable DC power even in demanding environments.
Overview of the TPS010-100W GP Series DIN Rail Power Supply
The TPS010-100W GP Series is a family of compact DIN rail power supplies with output power levels of 10 W, 30 W, 60 W, and 100 W. All models share the same design philosophy: deliver a high efficiency DC power supply in a narrow plastic housing that snaps directly onto standard TS35 DIN rails. According to the datasheet, the units accept 90–264 VAC, 47–63 Hz or 120–370 VDC input automatically and maintain a no-load power consumption below 0.3 W, making them suitable for modern energy-efficient systems.
The product range includes both 12V din rail power supply models (12–15 V adjustable) and 24V din rail power supply models (24–28 V adjustable). Output ratings extend up to 100 W with typical efficiencies up to 89%, depending on model and load. This flexibility allows engineers to power PLC I/O, sensors, gateways, relays, HMI panels, LED strips, and communication modules from a single, standardized platform.
Key Features of the TPS010-100W GP Series
- Universal 90–264VAC input and 120–370 VDC input capability for worldwide operation without manual range selection.
- Compact switching power supply design with narrow housing dimensions (from 91 × 23 × 60 mm for 10 W models) to save valuable DIN rail space.
- Convection cooled power supply concept that eliminates the need for fans, reduces noise, and increases reliability in closed cabinets.
- IP20 double insulation case made from flame-retardant PC material (UL94V-0), improving electrical safety in operator-accessible areas.
- Low ripple noise output (<1% of output voltage) to protect sensitive control electronics, communication interfaces, and LED drivers from power-related interference.
- Overload and overvoltage protection with auto-recovery. Overload protection typically engages above 110% of rated current, while OVP and over-temperature protection safeguard the system against fault conditions.
- Wide operating temperature range from 0°C to 50°C with derating up to 70°C, plus humidity tolerance from 5–95% non-condensing, making the units suitable for harsh industrial and building environments.
- Good EMC performance with power factor compliance to EN61000-3-2/-3-3 and immunity levels according to IEC 801, ensuring reliable operation in electrically noisy environments.
- High reliability with MTBF > 350,000 hours at full load and 25°C, reducing long-term maintenance requirements.
- 5-year warranty power supply, demonstrating the long-term reliability commitment of TPS Elektronik.
Model Range: 10–100 W, 12 V and 24 V Outputs
Within the TPS010-100W GP series, engineers can choose from multiple power levels and output voltages to match their load requirements:

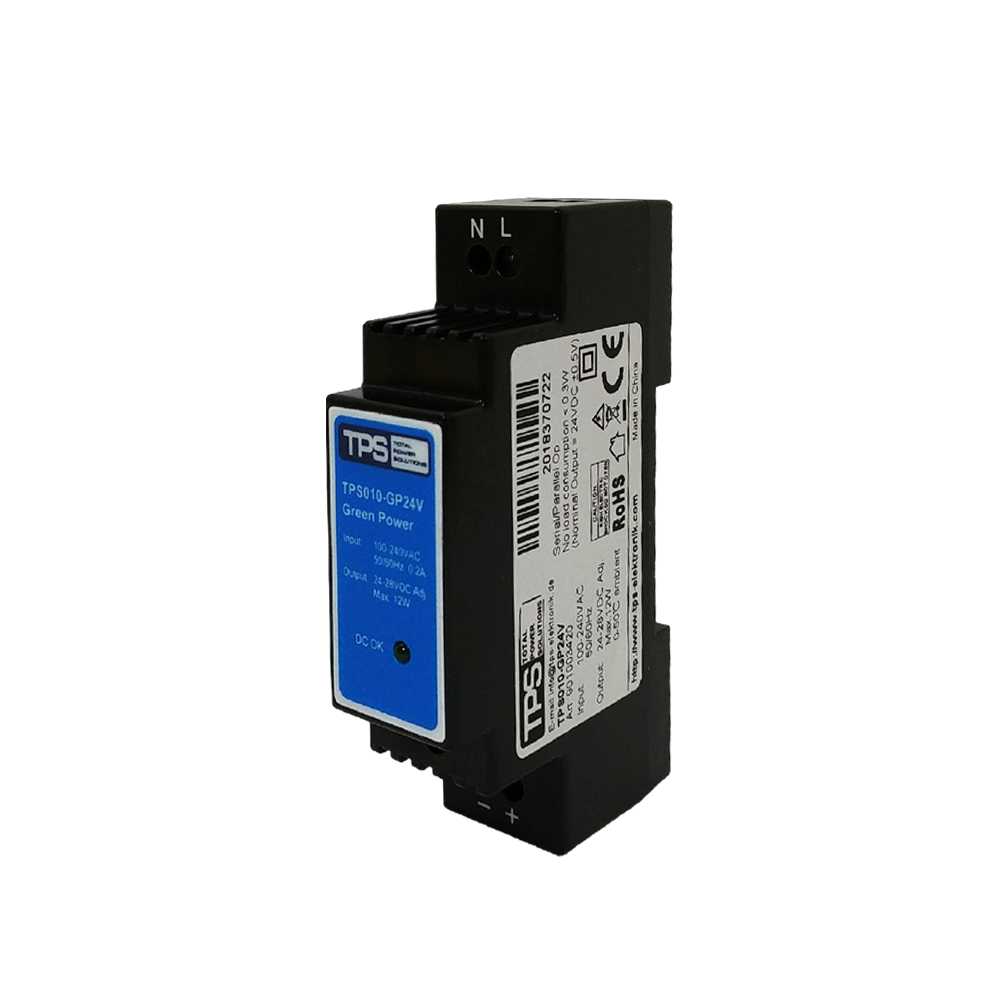

- 10 W models – suitable for small remote I/O islands, mini PLCs, sensors, and gateways where a slim profile and low standby losses are crucial.
- 30 W models – ideal for compact control boxes, door controllers, and small LED or relay loads.

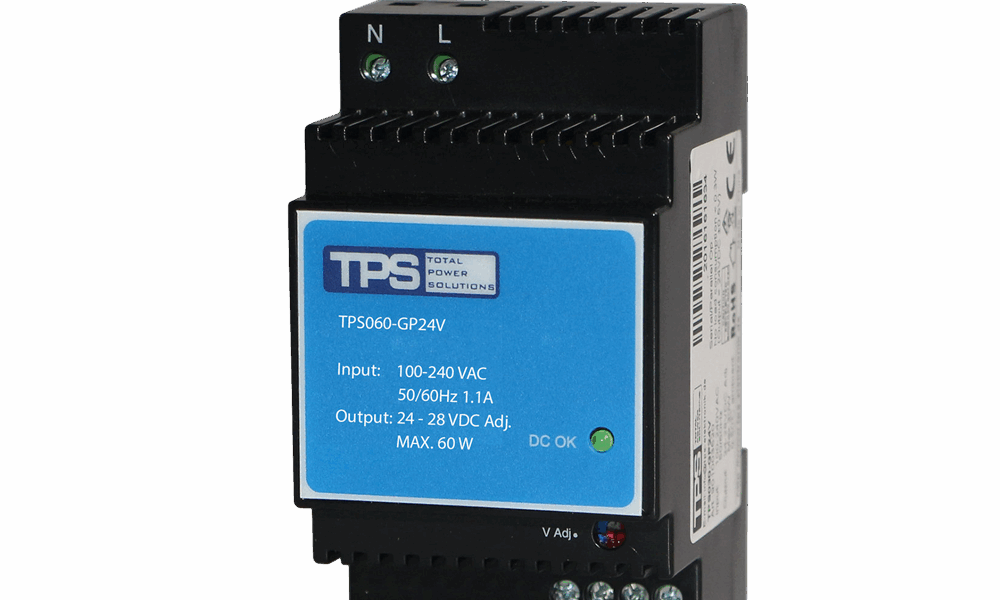

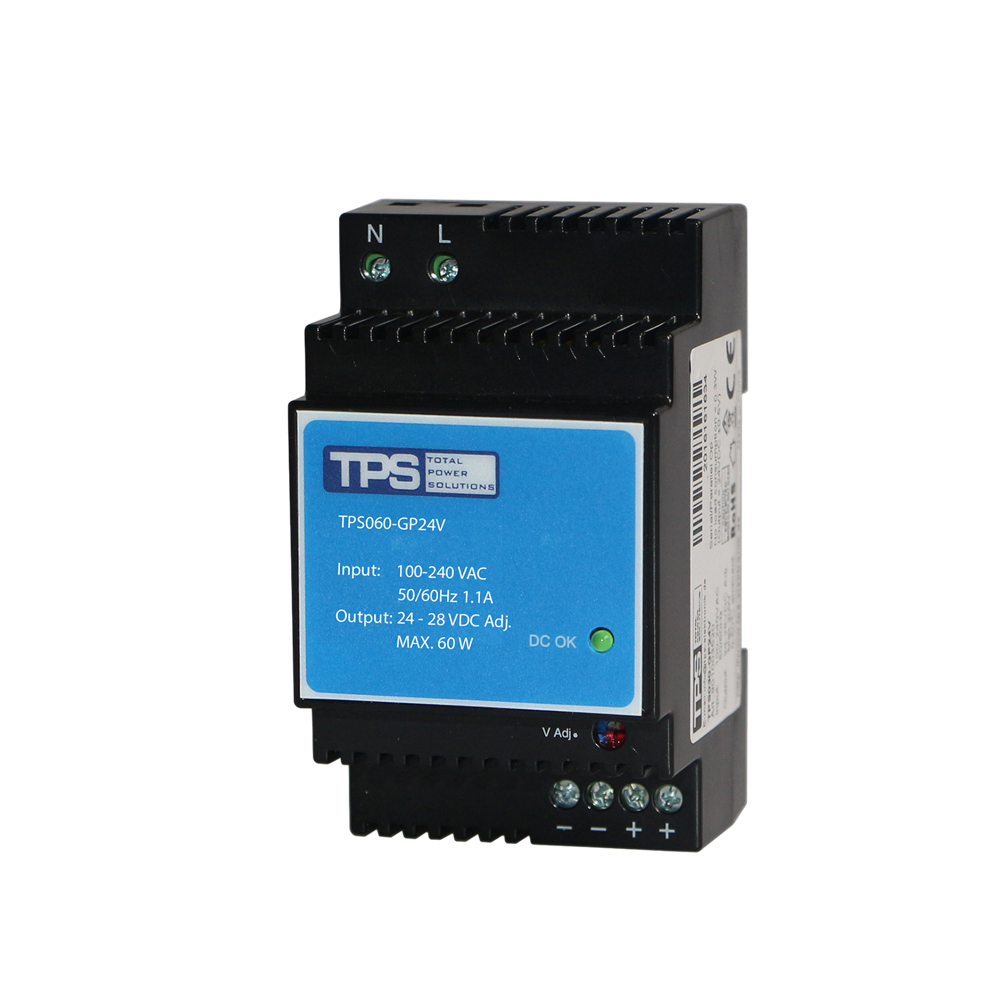

- 60 W models – often used for larger distributed I/O, communication modules, and mixed loads in industrial cabinets.

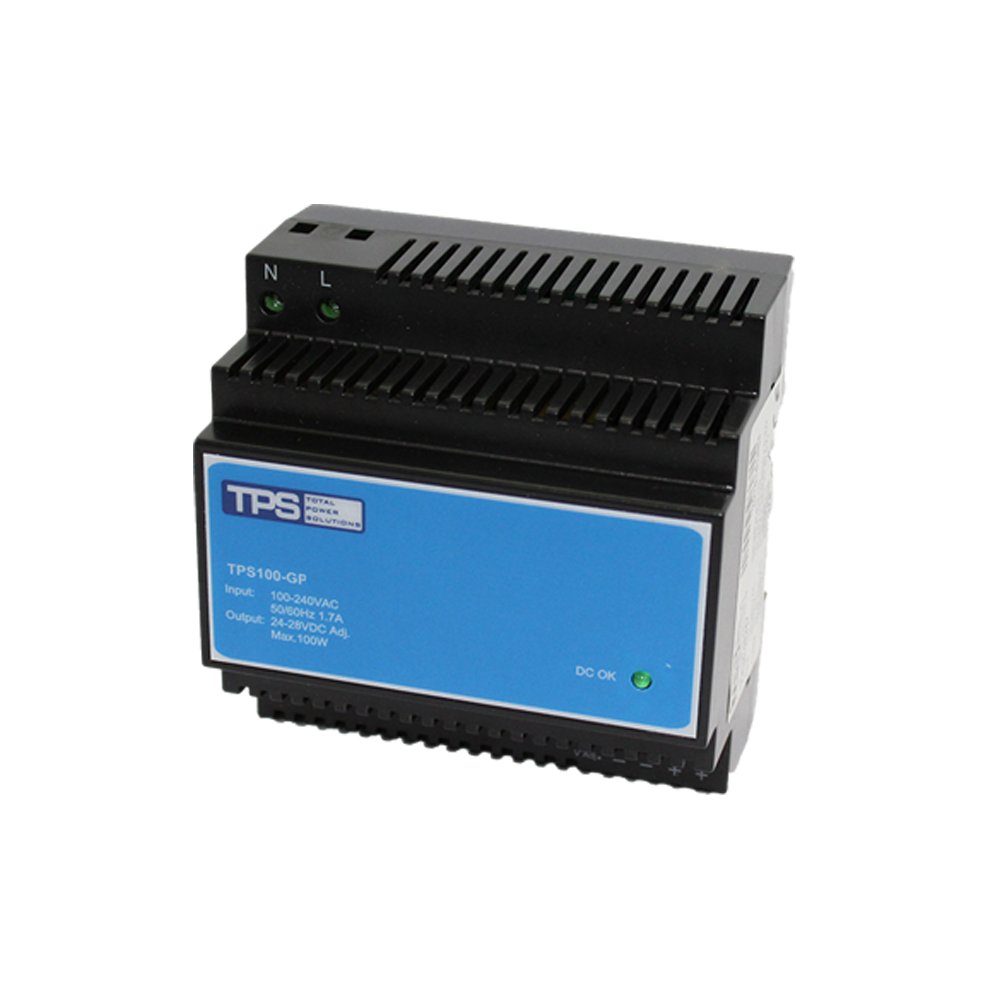

- 100 W models – power more complex subsystems such as small HMI panels, actuator groups, LED strips, or combined automation equipment.
The 12V din rail power supply variants offer 12–15 V adjustable output for loads such as relays, valves, encoders, and certain types of LED strips. The 24V din rail power supply variants deliver 24–28 V adjustable output, which is the de facto standard for industrial control electronics, PLCs, and many sensors.
Because all variants share the same mechanical platform, a control cabinet can be standardized mechanically while still supporting diverse power requirements simply by selecting the appropriate TPS010-100W GP Series article number from the ordering table in the datasheet.
Typical Applications
The TPS010-100W GP Series is highly versatile and can be used as an industrial automation power supply, a building automation control power supply, and much more. Typical application areas include:
- Industrial automation equipment – PLCs, I/O modules, motor control interfaces, sensors, actuators, and safety circuits requiring stable 12 V or 24 V DC.
- Building automation control power supply – HVAC controllers, room control units, blinds and shutter controllers, access systems, and energy-metering modules mounted in distribution boards.
- LED lighting power supply – owing to its status as an EN61347-2-13 certified power supply, the series can safely drive constant-voltage LED strips, signage, and accent lighting in commercial buildings.
- Medical equipment power supply – with safety approvals listed in the datasheet, the units can be integrated into medical and laboratory equipment that requires reliable DC power and low emissions.
- Alarm and safety systems, environmental monitoring, and utility metering, where a compact and dependable CE compliant power supply is essential.
Compliance, Safety, and Environmental Responsibility
From a regulatory point of view, the TPS010-100W GP Series is engineered to simplify certification of your end product. The datasheet lists CE conformity with the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU, as well as LED safety certification according to EN61347-2-13. Key international safety and EMC standards are also met, making it easier for OEMs to bring systems to market in Europe and globally.
In addition, the series is designed as a RoHS compliant power supply, contributing to environmentally responsible product design by restricting hazardous substances. Silent operation as a convection cooled power supply eliminates fan noise and reduces mechanical wear, while the high efficiency topology limits energy waste and panel heating.
Combined with a strong MTBF figure and a 5-year warranty power supply promise, these features ensure long-term reliability and lower total cost of ownership for integrators and end users.
Installation and Design-In Considerations
For panel builders and design engineers, the TPS010-100W GP Series is straightforward to integrate. All models mount on standard TS35/7.5 or TS35/15 DIN rails in a vertical orientation, with clearly labeled AC input terminals (L, N) and DC output terminals at the bottom. The front panel also provides an LED “DC OK” indicator and a small potentiometer for fine V Adj., allowing on-site adjustment to compensate for voltage drops or specific device requirements.
When designing the control cabinet layout, make sure that adequate air space is maintained above and below each module to fully benefit from the natural convection cooling. In higher temperature environments or when operated close to maximum load, follow the derating curves shown in the datasheet to ensure reliable operation over the full wide operating temperature range. Proper wiring practices and overcurrent protection on the primary side will further enhance system safety.
Conclusion: A Flexible Power Platform for Automation, Building, LED, and Medical Systems
The TPS010-100W GP Series brings together everything modern engineers expect from a DIN rail power platform: compact size, energy efficiency, versatile input range, and robust protection and safety features. Whether you need an industrial automation power supply, a building automation control power supply, an LED lighting power supply, or a medical equipment power supply, this family offers the right combination of output power, voltage options, and approvals.
With its universal 90–264VAC input, low ripple noise output, integrated overload and overvoltage protection, and compliance with CE, EN61347-2-13, and RoHS requirements, the TPS010-100W GP series is an ideal choice for OEMs and panel builders looking for a reliable and future-proof din rail power supply solution.
