Key Takeaways
- The TPS030–130W Pro Series is a versatile DIN rail power supply family covering 30 W, 70 W, 100 W, and 130 W output levels for modern control cabinets.
- A universal 90–264 VAC input, combined with an automatic 120–370 VDC input range, supports worldwide use in industrial automation, building automation, LED lighting, and selected medical applications.
- The compact, convection-cooled design with IP30 double-insulated housing enables safe, silent, and reliable operation while delivering efficient and stable 24 V DC output.
- Designed for use in building automation control systems, industrial automation equipment, LED lighting installations, and medical devices at system level, the series meets applicable CE requirements and is certified according to EN 61347-2-13.
- Robust construction, a wide operating temperature range, and a 5-year warranty concept support long-term reliability and low total cost of ownership.
From compact distribution boards in smart buildings to advanced industrial control cabinets, engineers require DIN rail power solutions that combine efficiency, safety, and flexibility. The TPS030–130W Pro Series from TPS Elektronik has been developed to meet these requirements, offering a scalable 24 V DIN rail power supply platform from 30 W up to 130 W with a consistent professional feature set.
This power supply family delivers reliable performance in demanding environments, combining wide-range AC/DC input capability with high efficiency and convection-cooled operation. With approvals for lighting applications and compliance with relevant CE and EMC standards, OEMs and panel builders can standardize on a single power platform across multiple projects.
TPS030-130W Pro Series at a Glance
The TPS030–130W Pro Series is available in four output power classes: 30 W, 70 W, 100 W, and 130 W. All models follow the same design concept, featuring compact DIN rail mounting, a robust plastic housing, and a front-side status interface with “DC OK” and “DC LOW” LEDs for fast visual diagnostics.
Each unit provides an adjustable 24–28 V DC output, allowing fine tuning to compensate for voltage drops in longer cable runs or to meet specific device requirements. Thanks to the universal 90–264 VAC input and automatic 120–370 VDC input range, the series can be deployed globally without manual input selection or additional switching hardware.
High Efficiency, Silent Operation and IP30 Protection
Efficiency directly affects cabinet temperature, energy consumption, and component lifetime. The TPS030–130W Pro Series uses a convection-cooled design without internal fans, relying on optimized thermal management to dissipate heat.
This enables silent operation, reduces wear-related failure risks, and supports long-term reliability—particularly in continuous-operation automation systems. The IP30 double-insulated enclosure protects against accidental contact with live parts while still allowing sufficient airflow for natural cooling, helping to limit thermal stress inside control cabinets.
Power Range from 30 W to 130 W for Flexible System Design
The graduated power levels of the TPS030–130W Pro Series support application-specific system design:

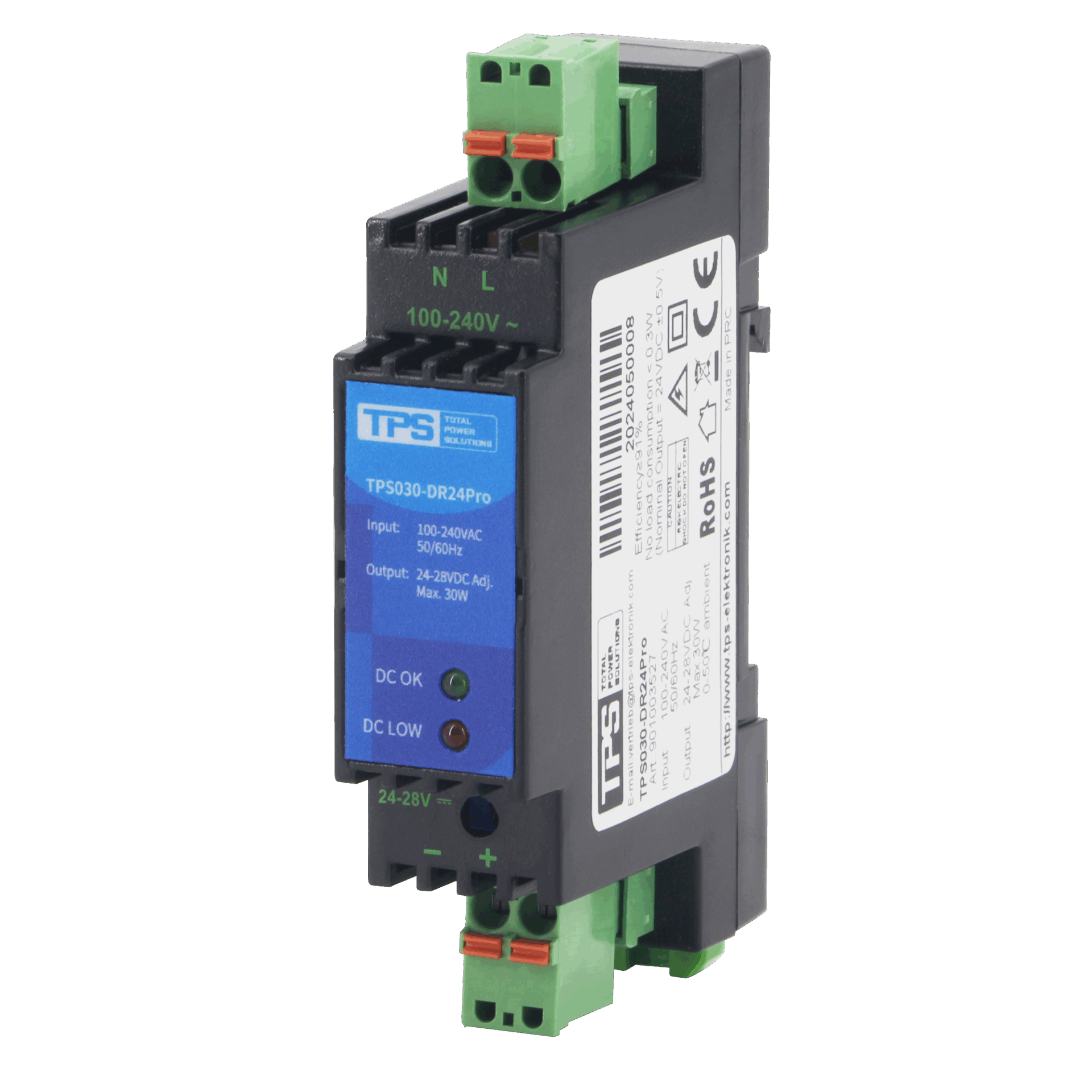

- 30 W models are suitable for small control nodes, communication gateways, and compact building automation functions.

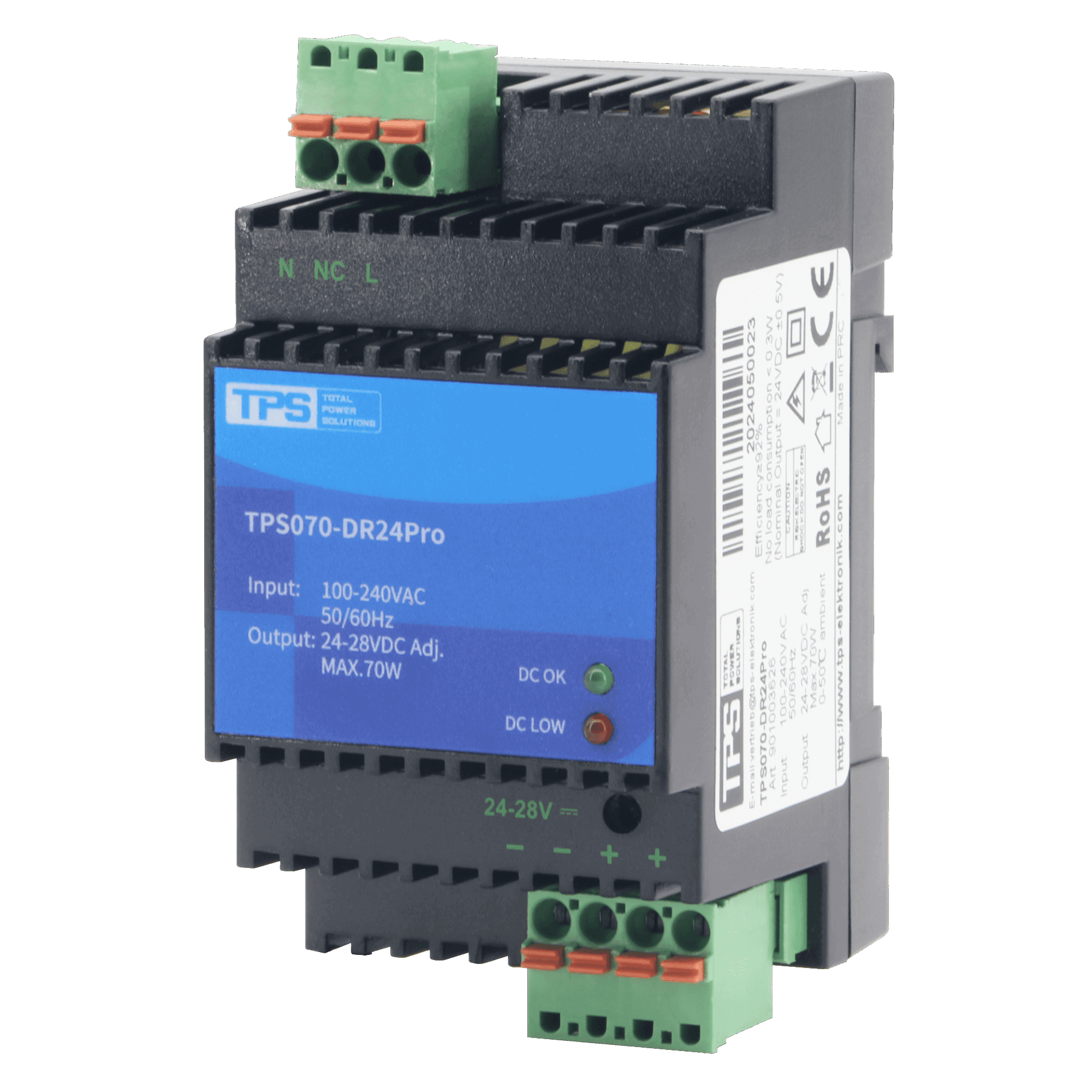

- 70 W versions provide additional headroom for extended I/O assemblies, valve islands, and sensor networks.

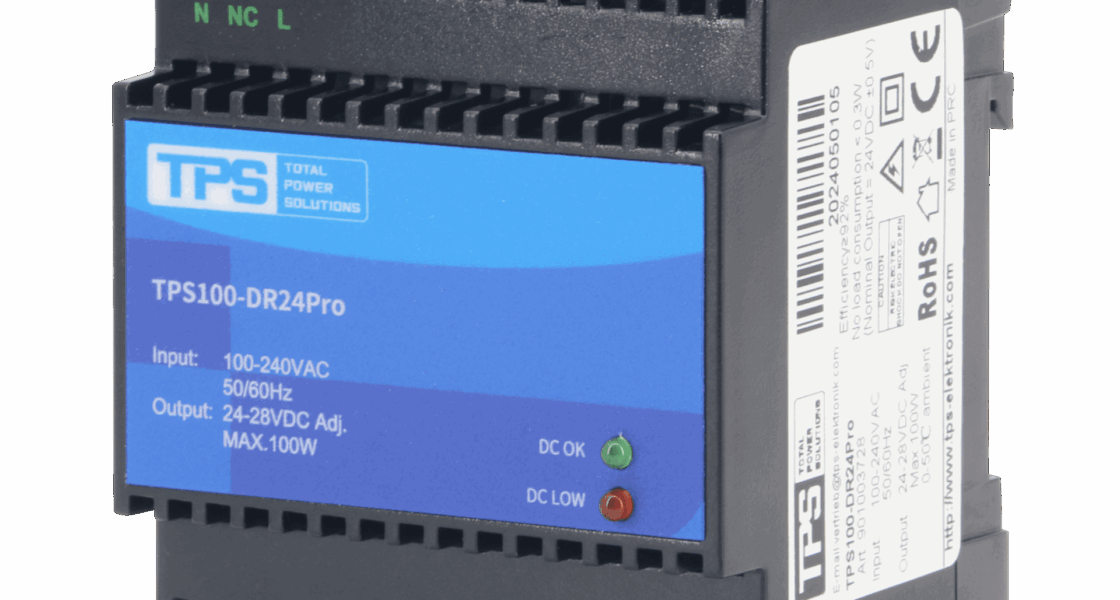

- 100 W units are well suited for systems supplying multiple subsystems such as PLCs, HMIs, and fieldbus couplers from a shared 24 V bus.

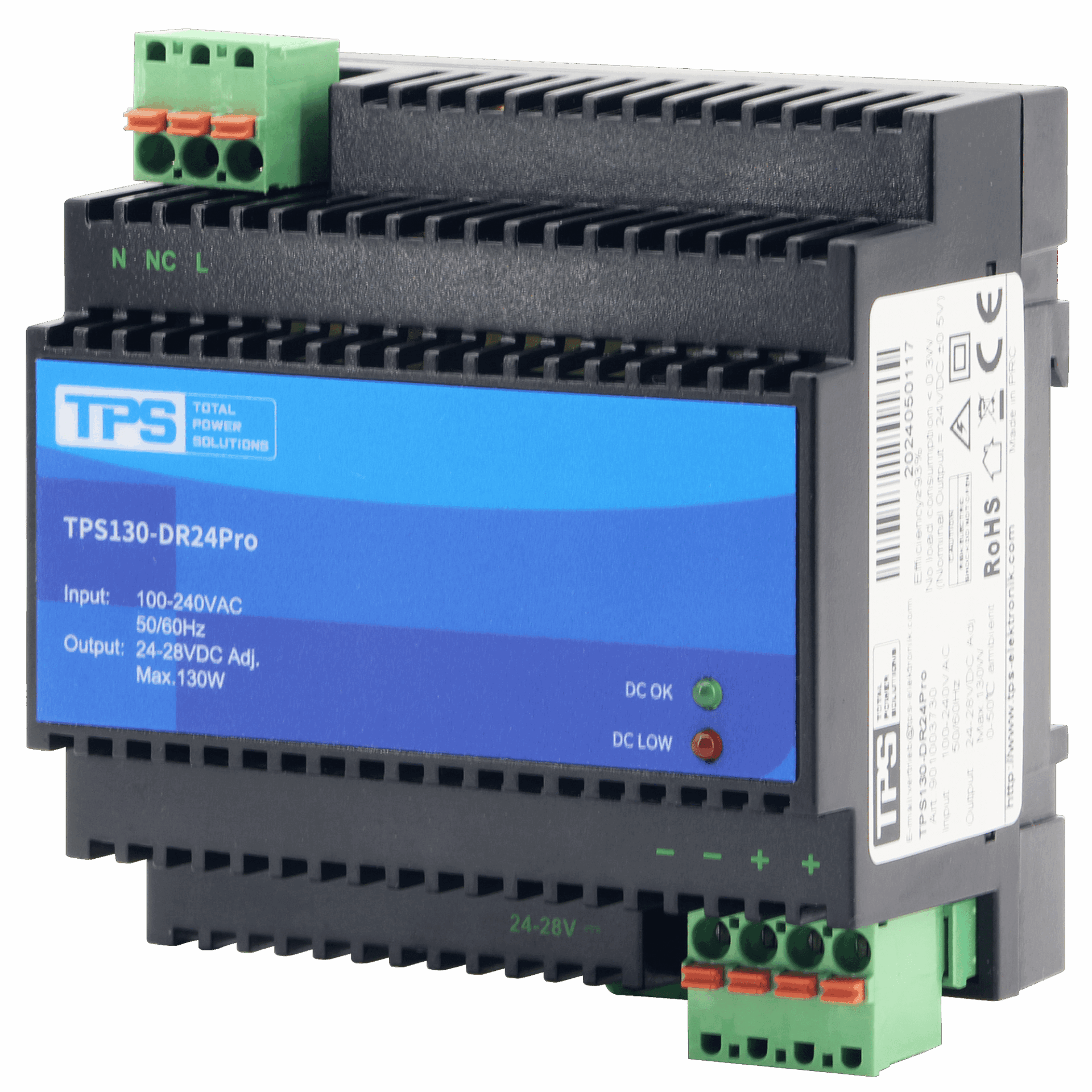

- 130 W models offer additional margin for higher inrush currents, relay loads, or future system expansion.
Because all models share the same mechanical dimensions and connector concept, panel layouts can be standardized while allowing simple power upgrades or downgrades by changing the PSU variant.
Optimized for Building, Industrial, LED, and Medical Applications
The TPS030–130W Pro Series is designed for a wide range of applications. In building automation systems, it reliably supplies room controllers, KNX or BACnet gateways, blind and shutter controllers, access systems, and energy meters. In industrial automation equipment, it provides stable 24 V DC power for PLCs, I/O modules, communication interfaces, and control electronics under demanding conditions.
For LED lighting applications, the series complies with EN 61347-2-13, supporting constant-voltage LED strips, signage, and architectural lighting in commercial and public buildings. With appropriate system-level design and risk assessment, the power supplies may also be used in medical devices, in line with the safety standards referenced in the datasheet.
Safety, Compliance and Environmental Performance
International projects require documented safety and EMC performance. The TPS030–130W Pro Series is CE-compliant according to the applicable Low Voltage and EMC Directives. Compliance with EN 61347-2-13 further supports its use in LED lighting systems, while testing against additional international safety standards simplifies certification of the final equipment.
The series is specified for a wide operating temperature range and supports operation in environments with elevated ambient temperatures, defined humidity limits, and installation altitudes of up to 3000 m, making it suitable for global deployment.
Long-Term Reliability with 5-Year Warranty
Careful component selection and conservative design contribute to high MTBF values and stable long-term operation. TPS Elektronik supports the TPS030–130W Pro Series with a 5-year warranty policy, providing confidence in durability, service life, and reduced maintenance effort.
Combined with compact dimensions, simple DIN rail mounting, and front-accessible pluggable terminals, the TPS030–130W Pro Series is a future-proof choice for automation, LED lighting, and selected medical applications requiring reliable 24 V DC power.
Conclusion
For industrial automation systems, building automation networks, LED lighting installations, or medical devices at system level, the TPS030–130W Pro Series provides a coherent, scalable, and standards-compliant power supply solution. With output ratings from 30 W to 130 W, wide AC/DC input capability, convection-cooled operation, IP30 double insulation, and documented compliance, it forms a robust foundation for modern 24 V DC power architectures.
